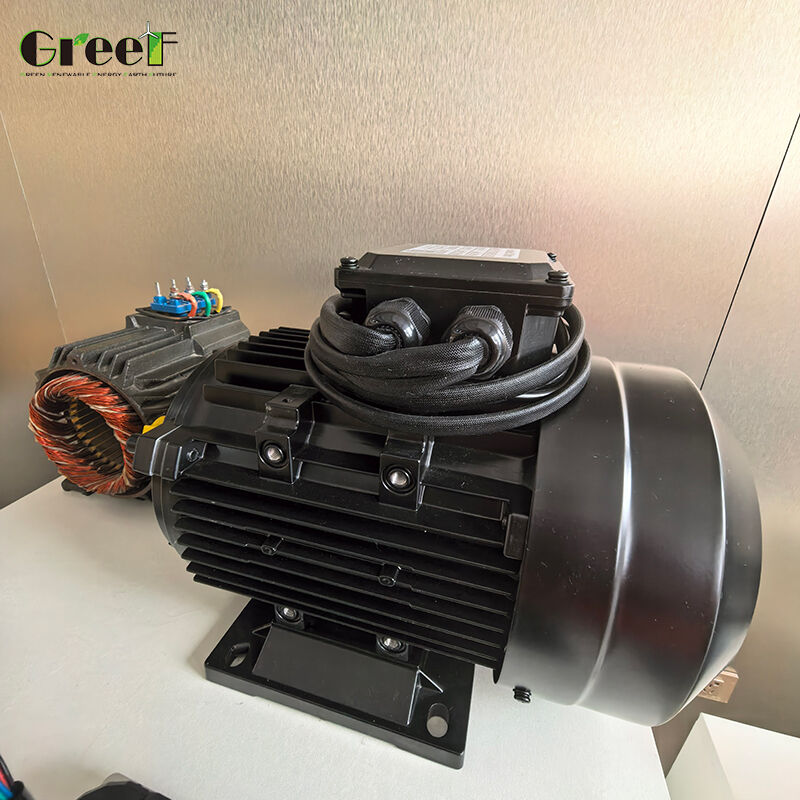

Low Noise Operation High Efficiency Permanent Magnet Motor with Constant Torque for Electric Vehicles and Industrial Automation

Permanent magnet motor for electric vehicles,Low noise permanent magnet motor,Automated production line magnet motor

Low noise permanent magnet motor

Automated production line magnet motor

اسم العلامة التجارية:

Greef

إصدار الشهادات:

Model Number:

TYP

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

نوع المولد:

محرك متزامن متردد 3 مراحل

طلب:

المركبات الكهربائية، الروبوتات، الأتمتة الصناعية

نوع المنتج:

محرك

تكرار:

50/60 هرتز

اسم المنتج:

محرك مغناطيسي دائم

تحمل العلامة التجارية:

SKF

نوع المحرك:

المغناطيس الدائم

مادة قذيفة المولدات:

الحديد الزهر

شروط الدفع والشحن

Minimum Order Quantity

1Set

الأسعار

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

شروط الدفع

/ تي تي، ويسترن يونيون، مونيغرام، ل / c

Supply Ability

منتجات ذات صله

فيديو

High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification

احصل على أفضل سعر

فيديو

Permanent Magnet Synchronous Motor with 0-8000 RPM Speedrange Featuring High Efficiency & Energy Saving and NdFeB Permanent Magnets

احصل على أفضل سعر

فيديو

IP54 Classification Permanent Magnet Motor with 0-8000 RPM Speed Range and High Efficiency for Industrial Applications

احصل على أفضل سعر

High Efficiency Exceeding 95% 6 Poles H Insulation Grade Permanent Magnet Motor Synchronous Magnet Motor

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

وصف المنتج

Permanent Magnet Motor for Electric Vehicles & Automated Production

TYP magnet motors feature rotors equipped with permanent magnets, delivering enhanced efficiency and higher power density relative to motor frame size. Powered by frequency inverters, these motors provide steady torque output across a broad speed range and operate efficiently at low speeds without forced ventilation, ensuring quiet operation and energy savings.

Key Features & Benefits

High Efficiency & Energy Saving

Achieves up to 30% energy savings compared to traditional induction motors, with high efficiency maintained across 20-110% load range. Exceptional power factor near 1.0 reduces stator current and minimizes copper losses.

Constant Torque Performance

Delivers consistent torque across wide speed range without forced ventilation or encoder requirements, ideal for variable speed applications.

Extended Bearing Life

L10 bearing life expectancy of 100,000 hours (10+ years continuous operation) with easy re-lubrication via grease nipples.

Advanced Magnet Technology

Utilizes NdFeB rare-earth magnets with 18x strength of ferrite magnets, epoxy-coated for durability and corrosion resistance.

Integrated Thermal Protection

PTC thermistors embedded in windings provide comprehensive protection against overheating from phase loss, overload, and voltage issues.

Synchronous Operation

Speed remains synchronized with stator magnetic field, eliminating slip and rotor power loss for stable performance under varying conditions.

Low Operating Current

Maximum torque/current ratio control reduces stator current by 15-30%, lowering transmission losses and increasing cable capacity.

Reduced Temperature Rise

15-20°C lower temperature rise than comparable asynchronous motors due to high efficiency and reduced electrical losses.

Industrial Applications

TYP series permanent magnet synchronous motors are designed for frequency conversion applications across various industries:

Injection molding machines
Air compressors and hydraulic machinery
Pipe making and cement pipe manufacturing
Food processing and pharmaceutical equipment
Plastic extruders and wire drawing machines
Electric vehicles, robotics, and industrial automation

Note: Requires pairing with dedicated permanent magnet motor inverter for optimal performance.

Cost Savings Analysis

Replacing a 37kW IE2 (GB3) induction motor with this permanent magnet motor can achieve approximately 9,000 RMB in annual energy cost savings with continuous 24/7 operation.

Customization Options

Greef offers comprehensive customization services for TYP model permanent magnet motors. Our brushless motors feature high power density and are suitable for electric vehicles, robotics, and industrial automation applications.

Insulation Grade	H
Insulating Resistance	100Mohm Min (500Vdc)
Frequency	50/60Hz
Certification	CE
Minimum Order	1 set
Delivery Time	25 working days
Payment Methods	T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Each motor is securely wrapped with protective materials and placed in custom-fitted, sturdy cardboard boxes with foam inserts for stability. All packages include clear handling instructions and tracking information for secure delivery.
