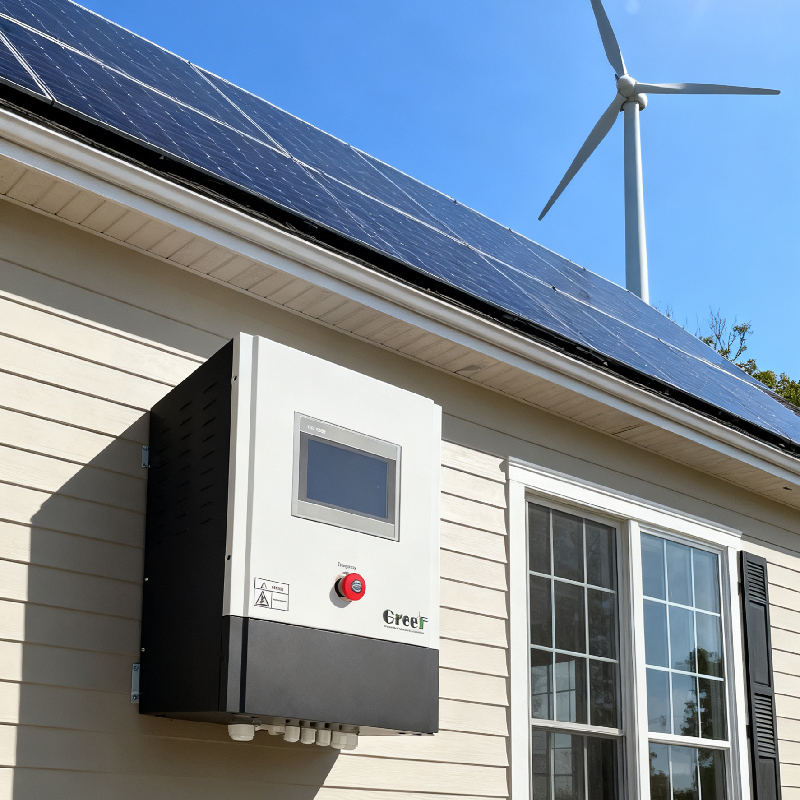

Name: Grid-Tied Controller with Rated Voltage AC220V-600V MPPT Efficiency 99.9% and IP20 Indoor IP65 Outdoors Protection
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

المنزل > المنتجات > على الشبكة تحكم >

Grid-Tied Controller with Rated Voltage AC220V-600V MPPT Efficiency 99.9% and IP20 Indoor IP65 Outdoors Protection

Rated Voltage AC220V-600V Grid-Tied Controller,MPPT Efficiency 99.9% On Grid Controller,IP20 Indoor IP65 Outdoors Protection Wind Turbine Controller

MPPT Efficiency 99.9% On Grid Controller

IP20 Indoor IP65 Outdoors Protection Wind Turbine Controller

اسم العلامة التجارية:

Greef

إصدار الشهادات:

Model Number:

GT-PCTC Series Controller

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

مراقبة الشبكة:

نعم

وظيفة يدوية:

الفرامل اليدوية، إعادة الضبط، مفتاح الطوارئ

طريقة التبريد:

الحمل الحراري الطبيعي

وظيفة:

المقوم ، التحكم ، إخراج العاصمة

توربينات الرياح الفولطية:

تيار متردد 220 فولت-600 فولت

كفاءة MPPT:

99.9 ٪

تردد الإخراج:

50 هرتز/60 هرتز

نوع المنتج:

حماية فوق الجهد، حماية قطع الشبكة، إخراج التوريد المنظم، إيقاف

شروط الدفع والشحن

Minimum Order Quantity

1Set

الأسعار

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

شروط الدفع

/ تي تي، ويسترن يونيون، مونيغرام، ل / c

Supply Ability

منتجات ذات صله

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

احصل على أفضل سعر

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

احصل على أفضل سعر

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

احصل على أفضل سعر

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

وصف المنتج

Grid Cut Off Protection DC DC Switching Controllers for Wind Turbines

Rated Voltage: AC220V-600V

Product Introduction

The Grid-Tied Controller is the most technologically critical component in wind generator on-grid systems. It converts three-phase AC current from wind turbines into DC current, which is then sent to grid-tie inverters.

GT-PCTC Series Features

Our professional GT-PCTC series controllers feature dual safety control systems:

PWM constant voltage system
Three-phase dump load brake system

This innovative solution integrates with solar inverters from leading brands including Growatt, Deye, Solis, and Ivet, enabling solar inverters to adapt to wind turbine operating conditions.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier, Control, DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Degree of protection	IP20(Indoor) IP65 (Outdoors)

Display Content

The LCD touch screen displays comprehensive data including generator speed (rpm), input voltage (Vdc), input current (Vac), output power (kW), grid voltage (Vac), grid current (A), and power generation statistics (daily, monthly, yearly).

System Solution

Applications

Designed for grid-connected systems including:

Wind power generation
Hydroelectric power generation
Solar power generation

Customization Options

Brand Name: Greef
Model Number: GT-PCTC Series Controller
Certification: CE
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Foam+plywooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram, L/C
MPPT Efficiency: 99.9%
Cooling Method: Natural Convection
Additional Features: Power curve controller function, grid tied controller, powerful remote control

Packing and Shipping

Each controller is securely packaged in a sturdy cardboard box with protective foam inserts to prevent damage during transit.

Orders processed and shipped within 1-2 business days
Worldwide shipping with tracking information
Variable delivery times with expedited options available
