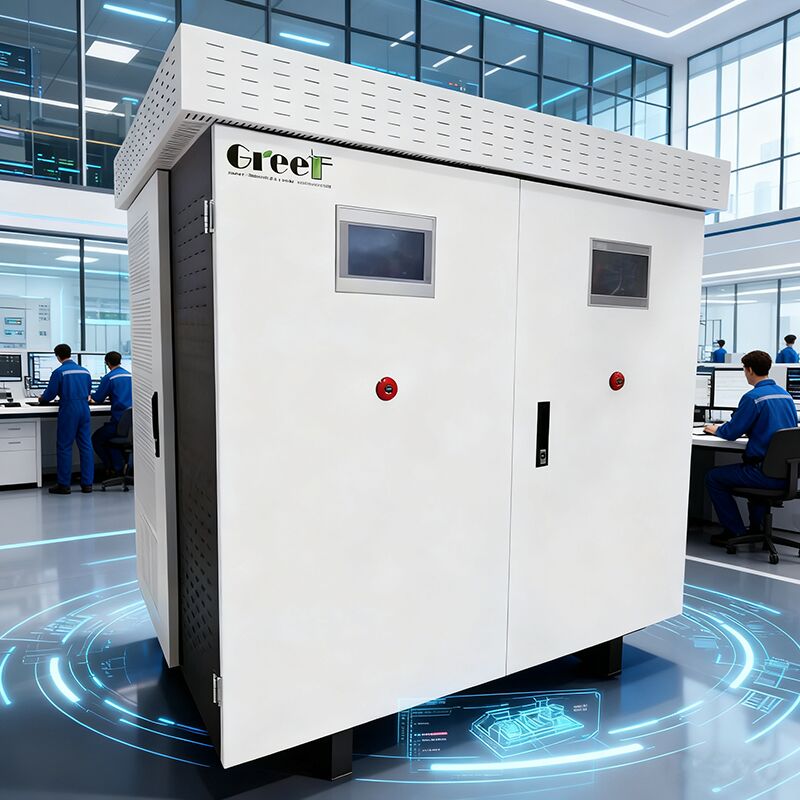

AC Generator-Battery Hybrid Converter
Rated voltage Vac ≥ 320 on-grid controller suitable for 400 volt rated grid voltage applications
Product Overview
The GREEF ENERGY multi-functional converter integrates multiple essential functions into a single, efficient device. It performs AC-to-DC rectification specifically designed for permanent magnet generators, battery charging, DC-to-AC inversion, and comprehensive energy management through an integrated system.
Featuring a configurable dual LCD touchscreen and advanced converter technology, this unit ensures stable voltage and frequency control for permanent magnet synchronous generators (PMSGs), guaranteeing continuous and reliable power supply to various loads.
The converter can be configured for grid-tied operation, supporting seamless integration with power grids while efficiently performing operational use and grid charging functions.
Technical Specifications
Key Parameters
| Model |
Mars-100kt |
| Rated power (kW) |
100 |
| Rated voltage (Vac) |
≥ 320 |
| Optimal generator rated voltage (Vac) |
450 |
| AC voltage working range (Vac) |
240 - 550 |
| Maximum AC current (A) |
180 |
| Battery type |
Lithium-ion |
| Battery voltage range (Vdc) |
350 - 450 |
| Rated battery voltage (Vdc) |
400 |
| Max charging & discharging current (A) |
250 |
| Rated charging/discharging power (kW) |
100 |
| Rated charge and discharge current (A) |
144 |
| Rated grid voltage (V) |
400 |
| Permissible grid voltage range (V) |
300 - 460 |
| Rated grid frequency (Hz) |
50 / 60 |
| Maximum efficiency (%) |
95 |
Generator AC Input Side
Rated power: 100 kW, Rated voltage: ≥ 320 Vac, Optimal voltage: 450 Vac, Working range: 240-550 Vac, Maximum AC current: 180 A
Battery Input
Lithium-ion battery with voltage range 350-450 Vdc, rated at 400 Vdc, supporting maximum charging/discharging current of 250 A.
Output Side (Grid-Connected)
Rated charging/discharging power: 100 kW (max 120 kW), Rated current: 144 A (max 173 A), Grid voltage: 400 V (300-460 V range), Frequencies: 50/60 Hz.
Performance Metrics
Current total harmonic distortion: <3%, Power factor: >0.99 (-1 to 1 range), Overload capacity: 1.2x nominal power for 1 minute continuous operation.
AC Side (Off-Grid)
Rated input voltage: 400 V (±2% tolerance), Total harmonic distortion for linear loads: <3%.
Protection Features
- Over voltage and speed protection: Optional
- AC short-circuit protection: Supported
- AC output overcurrent protection: Supported
- Surge protection: Level 2
Basic Parameters
Maximum efficiency: 95%, Topology: AC-DC rectifier, DC-DC buck-boost converter, DC-AC inverter, Integrated Energy Management System (EMS).
Environmental Specifications
Operating temperature: -40°C to 60°C, Protection level: IP54, Maximum altitude: 4,000 meters (derating above 3,000 meters), Standby power consumption: <50 W.
Display & Communication
LCD SMART Touch Screen display showing generator speed (rpm), input voltage (Vdc), input current (Vac), output power (kW), grid voltage (Vac), grid current (A), energy generation statistics (today, month, year), and power curve settings. Communication modes: Ethernet, RS485, WiFi.
Cooling System
Intelligent air cooling system for optimal thermal management.
Physical Dimensions
Dimensions (excluding dump load): 1500mm H × 1500mm W × 1300mm D, Weight: up to 600 kg.
Applications
The GREEF ENERGY multi-functional converter provides a versatile and adaptable solution for diverse power management requirements. It excels in applications demanding reliable and intelligent energy system control, making it essential for modern energy infrastructures.
Primary applications include renewable energy systems integration with Permanent Magnet Synchronous Generators (PMSGs) for wind and hydro turbine setups, supporting off-grid or hybrid power frameworks with stable AC power delivery.
For off-grid and backup power applications, the converter serves as the central hub for power conversion and system management in remote locations, cabins, telecommunications sites, and standalone installations.
Grid-interactive operation enables battery charging from the grid and, where permitted, feeding surplus electricity back to the grid, enhancing power flow management flexibility.
Industrial and commercial environments benefit from reliable power under unbalanced load conditions, with remote monitoring via WIFI/LAN and Modbus protocol integration with building management systems.
Specialized control options include water gate motor control for micro-hydropower plants and Static Transfer Switch (STS) for smooth grid/off-grid transitions.
This comprehensive platform consolidates power generation, storage, consumption management, and grid integration capabilities for flexible deployment across residential off-grid systems, commercial backup solutions, and small-scale renewable energy plants.
Customization & Ordering
The Greef AC PCS On Grid Controller is manufactured in China with CE certification. It features an LCD SMART Touch Screen display, intelligent air cooling, and supports 400Vdc rated battery voltage within 350-450Vdc range.
Display includes comprehensive monitoring data: Generator Speed (rpm), Input Voltage (Vdc), Input Current (Vac), Output Power (kW), Grid Voltage (Vac), Grid Current (A), and detailed power generation statistics with power curve controller functionality.
Packaging: Secure foam and plywooden cases. Minimum order: 1 set. Pricing: Negotiable. Delivery: Approximately 25 working days. Payment terms: T/T, Western Union, MoneyGram, L/C.
