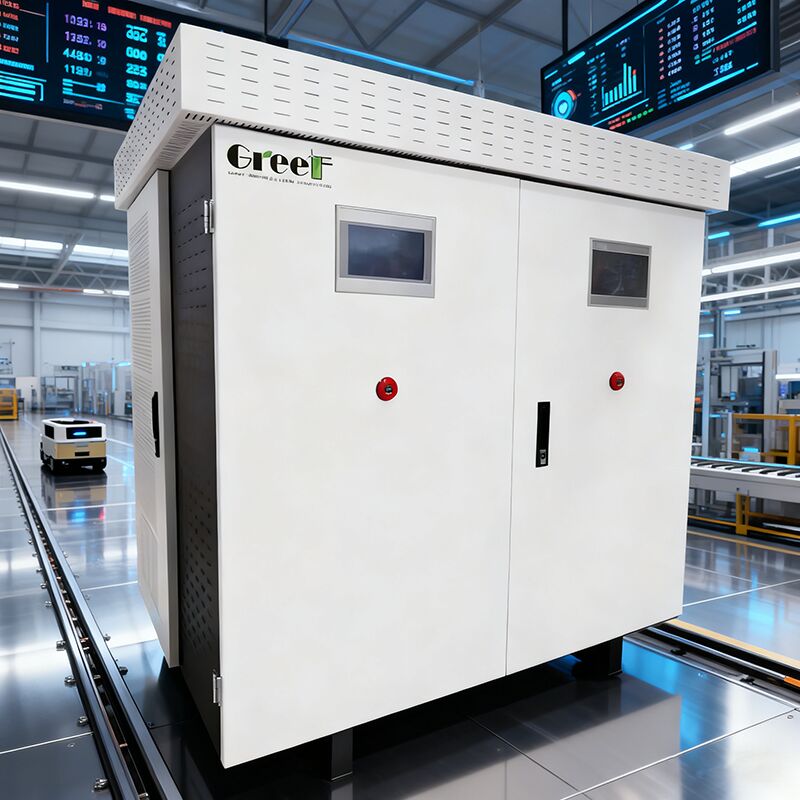

Name: On Grid Controller with 350-450Vdc Battery Voltage Range LCD SMART Touch Screen and 100kW Rated Power for Smart Home Automation
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

المنزل > المنتجات > على الشبكة تحكم >

On Grid Controller with 350-450Vdc Battery Voltage Range LCD SMART Touch Screen and 100kW Rated Power for Smart Home Automation

350-450Vdc Battery Voltage Range On Grid Controller,LCD SMART Touch Screen Grid Tied Controller,100kW Rated Power Energy Management Controller

LCD SMART Touch Screen Grid Tied Controller

100kW Rated Power Energy Management Controller

اسم العلامة التجارية:

Greef

إصدار الشهادات:

Model Number:

AC PCS

اتصل بنا

اطلب اقتباس

On Grid Controller with 350-450Vdc Battery Voltage Range LCD SMART Touch Screen and 100kW Rated Power for Smart Home Automation

تفاصيل المنتج

تصنيف الشحن والتفريغ الحالي (أ):

144

محتويات العرض:

سرعة المولد (دورة في الدقيقة)، جهد الإدخال (Vdc)، تيار الإدخال (Vac)، طاقة الخرج (كيلوواط)، جهد الشب

نطاق عمل تيار التيار المتردد (Vac):

240 ~ 550

نطاق جهد البطارية (VDC):

350 - 450

الجهد الأمثل للمولد (Vac):

450

تصنيف جهد الشبكة (V):

400

عرض:

شاشة لمسة ذكية LCD

القوة المقدرة (كيلوواط):

100

شروط الدفع والشحن

Minimum Order Quantity

1Set

الأسعار

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

شروط الدفع

/ تي تي، ويسترن يونيون، مونيغرام، ل / c

Supply Ability

منتجات ذات صله

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

احصل على أفضل سعر

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

احصل على أفضل سعر

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

احصل على أفضل سعر

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

وصف المنتج

GREEF ENERGY Multi-Functional Power Converter

Advanced power conversion system with 350-450 VDC lithium-ion battery compatibility and intuitive touch screen display for smart home automation and industrial control applications.

Product Overview

The GREEF ENERGY multi-functional converter integrates multiple power management functions into a single, efficient device. This comprehensive system supports AC-to-DC rectification for Permanent Magnet Generators (PMGs), battery charging capabilities, and DC-to-AC inversion for reliable power conversion.

Key Features

Integrated energy management system for optimized power distribution
Dual LCD touchscreen interface for intuitive monitoring and control
Advanced voltage and frequency regulation for PMSG systems
Grid-tied operation capability with synchronization functionality
Configurable for various operational modes and applications

Technical Specifications

Generator AC Input

Rated Power	100 kW
Voltage Range	240-550 VAC
Optimal Voltage	450 VAC
Maximum Current	180 A

Battery System

Battery Type	Lithium-ion
Voltage Range	350-450 VDC
Rated Voltage	400 VDC
Max Charge/Discharge Current	250 A

Grid-Connected Operation

Rated Power	100 kW (120 kW peak)
Rated Current	144 A (173 A max)
Voltage Range	300-460 V
Frequency Range	50-60 Hz
Power Factor	> 0.99 (range -1 to 1)
THD	< 3% at rated power

System Performance

Maximum Efficiency: 95%

Operating Temperature: -40°C to 60°C

Protection Rating: IP54

Maximum Altitude: 4,000 meters

Standby Consumption: < 50 W

Applications

This versatile converter serves as a comprehensive power management solution across multiple sectors:

Renewable Energy Systems: Integration of PMSG from wind/hydro turbines
Off-Grid & Backup Power: Remote locations, cabins, telecom stations
Grid-Interactive Systems: Grid-tied operations with battery charging
Industrial & Commercial: Stable power supply with remote monitoring
Specialized Control: Water gate motor control and STS integration

Customization Options

Greef Energy offers customizable grid-tied controller solutions with flexible configuration options:

Our AC PCS model features CE certification, multiple communication interfaces (Ethernet, RS485, Wi-Fi), and intelligent air cooling. With a minimum order of 1 set and negotiable pricing, we provide tailored solutions for your specific project requirements.

Ordering Information

Minimum Order Quantity	1 set
Delivery Time	25 working days
Payment Methods	T/T, Western Union, MoneyGram, L/C
Packaging	Foam and plywood cases
